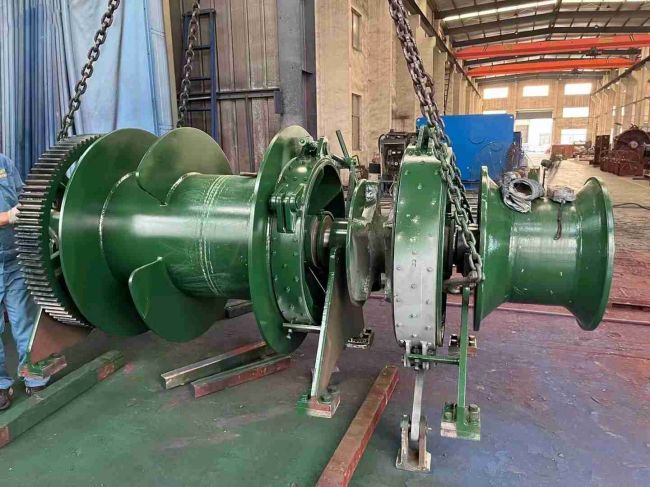

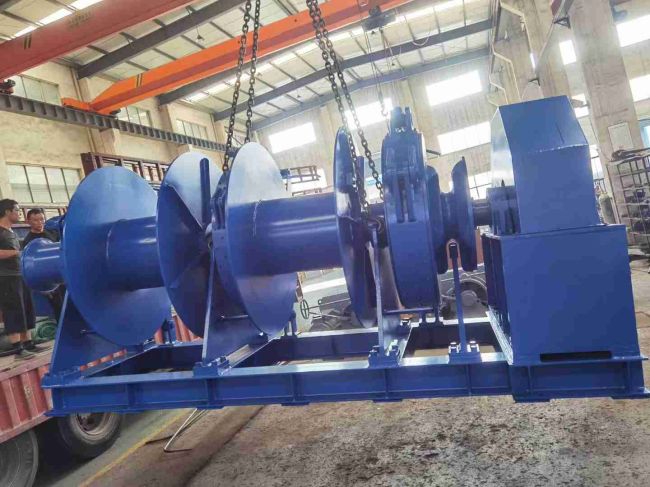

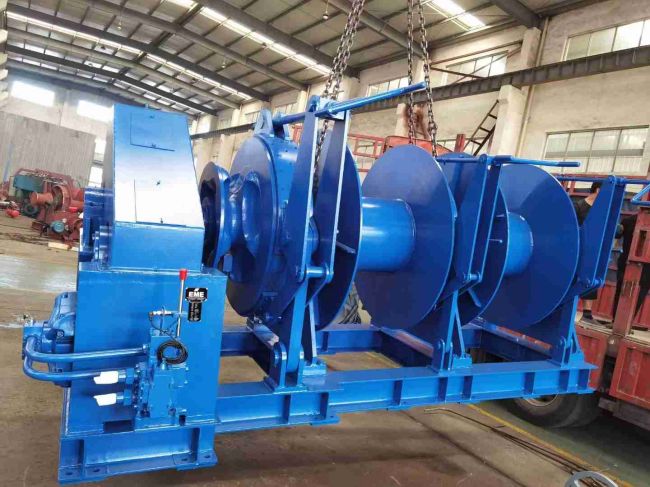

15ton 20ton 30ton 35ton Marine Hydraulic Winch For Fishing Boats
This marine hydraulic winch is driven by hydraulic transmission device, this device is characterized by high efficiency, reliable operation. The winches are suitable for railway cranes, ship deck machinery, dock crane and container hoisting mechainism, due to its compact structure so it can be directly mounted on the inside of the drum, save space. In addition, the design is very easy to install.
Eternalwin produces 1ton to 200ton marine mooring winches, like marine windlass, anchor winch, mooring winch, windlass. drive types are electric, hydraulic, diesel engine, etc. widely used in ocean engineering, international shipment, inland river ships. Products are exported to Singapore, Malaysia, Indonesia, Vietnam, United Kingdom, Russia, Ghana, South Africa, Etc.
| Product Name | Rated Pull Force | Rope Speed | Drum Capacity | Motor Power |
| Hydraulic winch | 1ton | 12m/min | 150m,11mm | 5.5kw |
| Hydraulic winch | 2ton | 12m/min | 150m,15mm | 11kw |
| Hydraulic winch | 4ton | 15m/min | 150m,18mm | 22kw |
| Hydraulic winch | 5ton | 15m/min | 150m,20mm | 30kw |
| Hydraulic winch | 10ton | 12m/min | 200m,30mm | 45kw |
| Hydraulic winch | 15ton | 12m/min | 250m,32mm | 75kw |
| Hydraulic winch | 20ton | 10m/min | 250m,42mm | 75kw |
| Hydraulic winch | 25ton | 10m/min | 250m,46mm | 90kw |
| Hydraulic winch | 40ton | 8m/min | 250m,56mm | 110kw |
| Hydraulic winch | 50ton | 6m/min | 250m,58mm | 110kw |
| Hydraulic winch | 60ton | 6m/min | 250m,64mm | 132kw |
| Hydraulic winch | 100ton | 4m/min | 250m,86mm | 132kw |
| Hydraulic winch | 150ton | 4m/min | 250m,96mm | 200kw |
| Hydraulic winch | 200ton | 4m/min | 250m,100mm | 270kw |
Please contact us for more detailed parameters about the marine hydraulic winches!
